Ignition Switch AC DC AC/DC MB

MB AC DC or AC/DC Ignition Switch

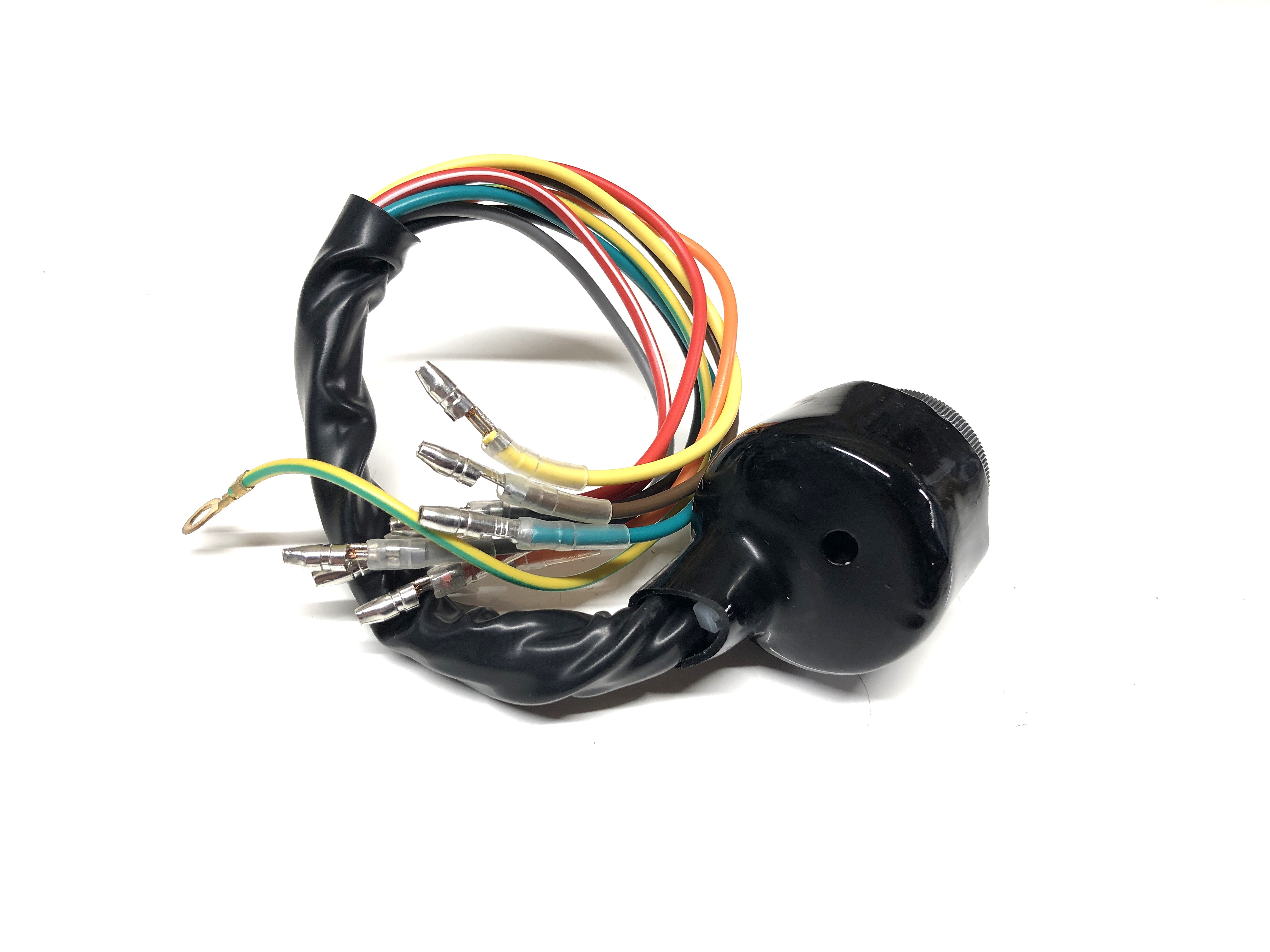

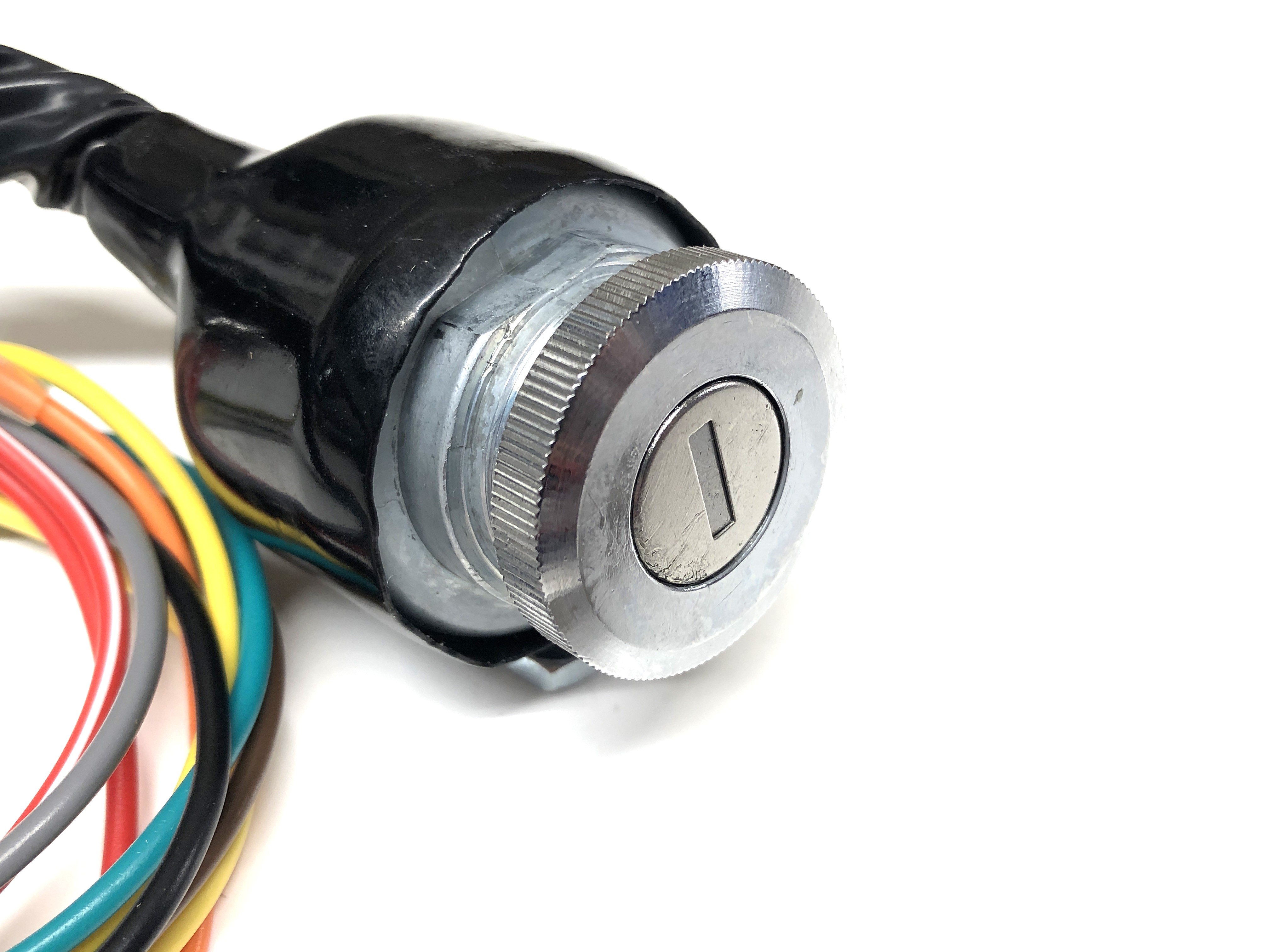

The MB 'FIT ALL' Lambretta Ignition switch, the most advanced ignition switch ever made for Lambretta scooters.

This fits all Models and Series types, Series 1, 2, 3 and other versions.

• Can be used as a normal AC switch
• Can be used as a full DC switch
• Can be used as a AC and DC switch
• Can be used as a AC and trickle charge DC switch for toys
• In the off position the Battery - if used it is isolated, so no power at the headset
• No machining required in non switch headsets

it has 4 switch positions (it does`nt use a parking light position)

• Position 0) Off
• Position 1) On, brake light, horn (accessories)
• Position 2) On, brake light, horn (accessories) side lights
• Position 3) On, brake light, horn (accessories) full lights

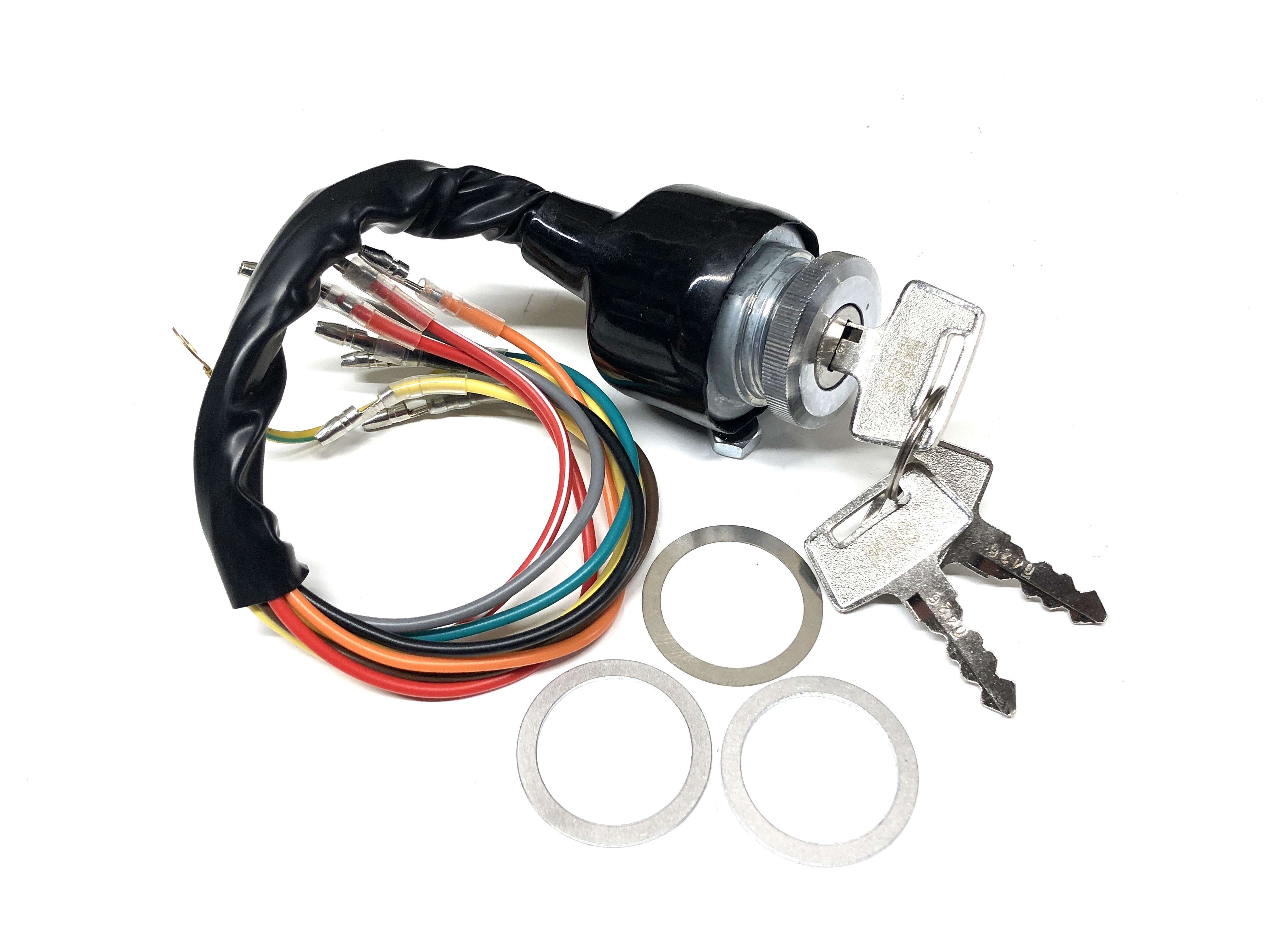

Comes with 3 spacer washers propper fitment.
Wiring diagram for either all AC or all DC or AC/DC click - HERE

Wiring for this MB AC, AC/DC, DC FIT ALL Race-Tour Ignition switch.
If using a Battery with the key in the off position the Battery power is isolated at the headset.
For long term non use of the Scooter, either remove the Battery or disconnect the leads
POSITION 0) Off (key vertical)
POSITION 1) Day light no lights (1st position)
POSITION 2) Day with side lights (2nd position)
POSITION 3) Night full lights (3rd position)
Green - Ignition
Yellow / Green - Earth
Black - Back light and speedo light feed
Grey - Power to side lights
Brown - Main power feed lights (parking on a loop)
Yellow - Side light festoon feed
Orange - Dip Dazzle feed
Red - If using a battery - Main power feed IN from battery DC
Red / White - If using a battery - Main power feed OUT DC
