Polini CP 24mm Evolution
x814 B9
£147.50 inc. tax
Polini CP 24mm Evolution Summary

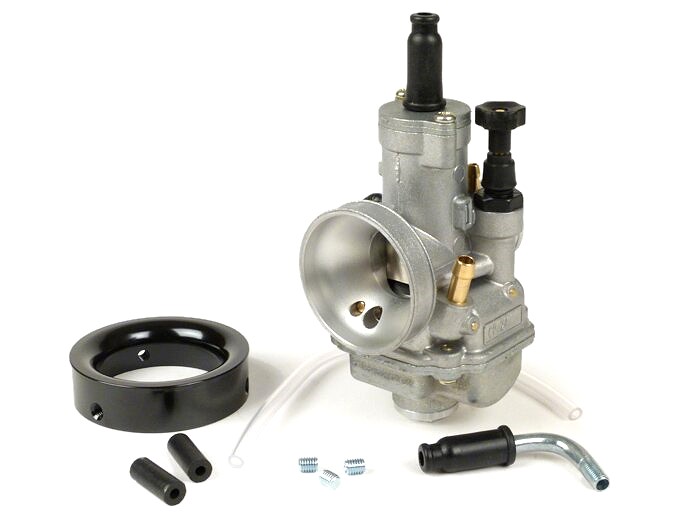

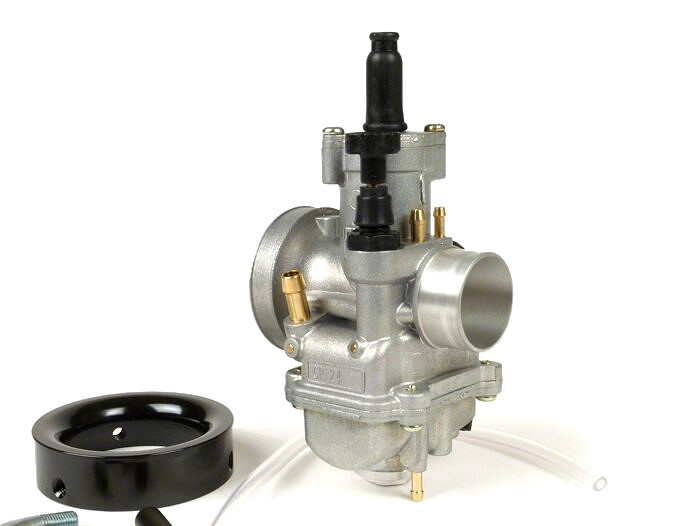

Polini evolution CP 24mm Carburettor for use on a CP135 and all Lambretta series 1, 2, 3 & Gp
Factory set up as:
IDLE JET PACK HERE

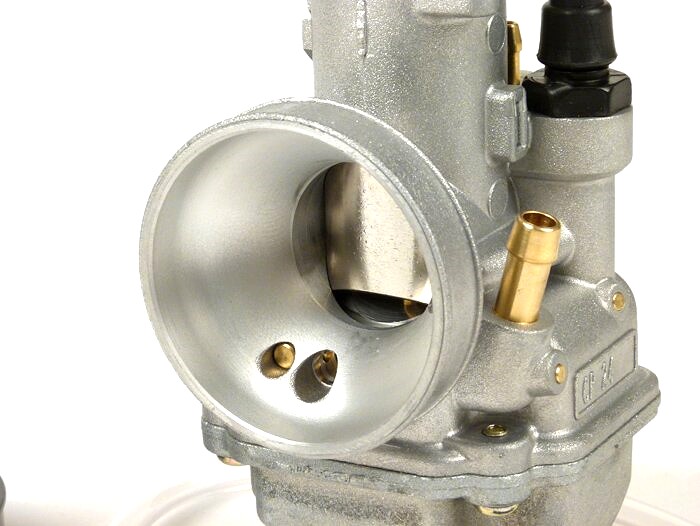

The CP Evolution series is a fully developed version of the traditional Polini CP carburettor: to exploit the positive effects of a big carburettor (more power, more torque, more power) Polini uses a clever trick. The carburettor passage opens again after the slide valve to a much bigger diameter (CP24 = 26mm). This way the Polini CP carburettor with 24 mm of passage gives more power like a Dell'Orto PHBL25 carburettor. Thanks to the small dimensions and the integrated intake manifold, the CP carburettor is ideal on all powerful engines where a small size is an advantage.
Factory set up as:
- main jet: 112
- secondary jet: 40
- slide needle: 14/22
- slide: 25x30°
- needle nozzle: Ø2.7mm
IDLE JET PACK HERE
The CP Evolution series is a fully developed version of the traditional Polini CP carburettor: to exploit the positive effects of a big carburettor (more power, more torque, more power) Polini uses a clever trick. The carburettor passage opens again after the slide valve to a much bigger diameter (CP24 = 26mm). This way the Polini CP carburettor with 24 mm of passage gives more power like a Dell'Orto PHBL25 carburettor. Thanks to the small dimensions and the integrated intake manifold, the CP carburettor is ideal on all powerful engines where a small size is an advantage.
- Height: 118.5 millimetres
- Width: 66 millimetres
- Depth: 70 millimetres
- Connection width air filter side: Ø46 millimetres (Ø60mm with enclosed funnel)
- Connection width engine side: Ø28,5 millimetre
