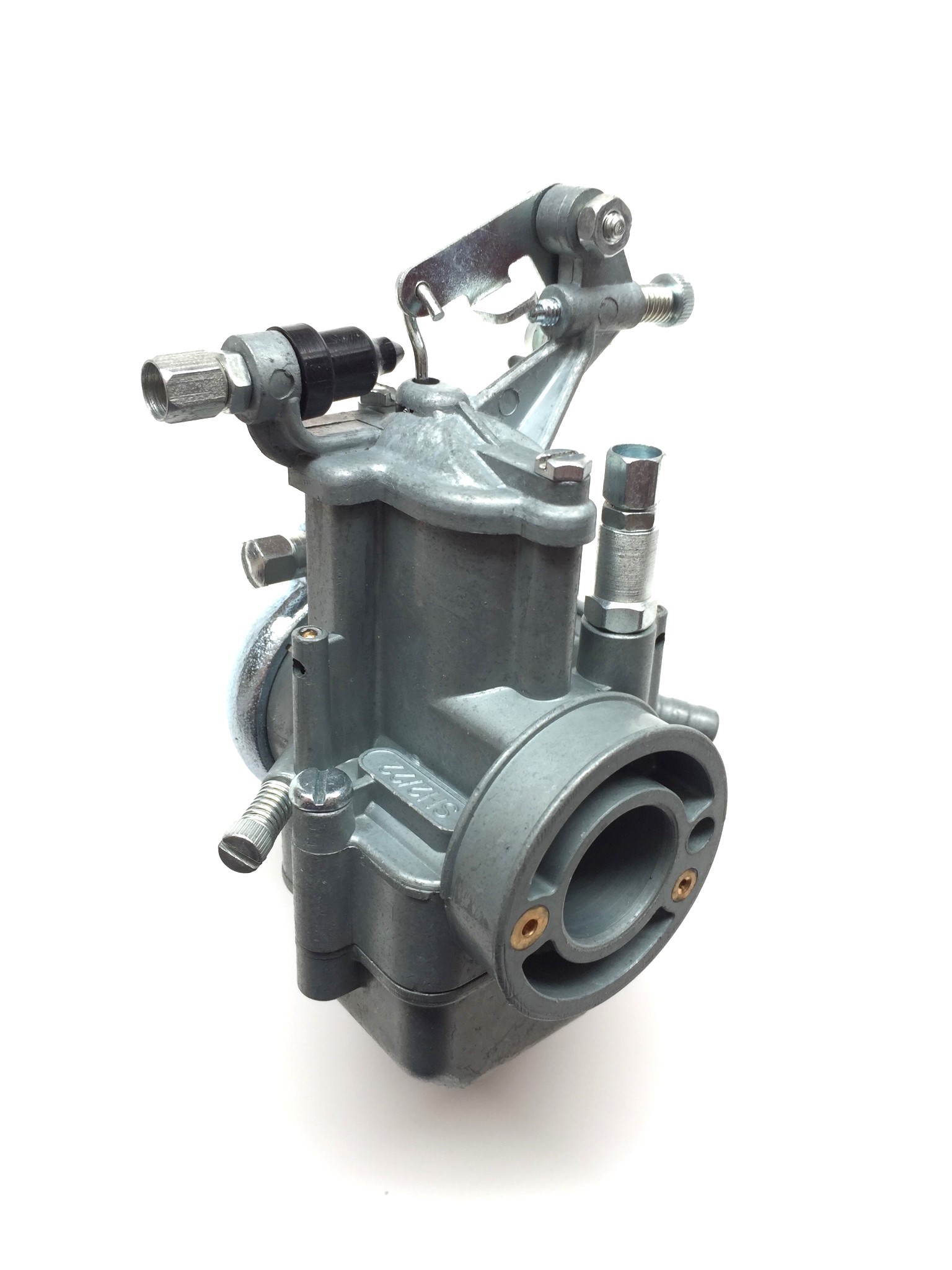

Scootopia Dellorto SH22 Carburettor

22mm carburettor, This is a remade version of the now discontinued Dellorto SH22 that was originally fitted to the Italian Gp/dl 200 scooter range..
Carb is already jetted to 200 spec...
Scootopia production.

Scootopia made Lambretta GP150 & 200 22mm carb to fit all Lambretta series 1/2/3 & DL/GP We recommend you will need a 22mm Manifold with this carb. Perfect copy of the Dellorto SH22/2 carb. GP200 jetting set up already fitted, comes with an extra GP150 slide and atomiser.

fitment helpThe air mixture screw should be wound in until fully seated (do not force it) and then wound it back out to the prescribed amount. For these carbs the Lambretta workshop book suggests 0.5 turns out as a base setting, many dealers prefer 1.5 turns. From that when the scooter is warm, you can adjust the screw to fine tune. turn the screw out to richen or in to weaken. More information on this can be found in the latest Sticky Book, Page 172.
